The MITSUBA classical V-belts are a temperature and oil resistant, anti static designed for high speed and high toque drive with the premium quality significant, longer service life, and greater power transmission capabilities. Our 2-Ply Cover fabric is designed for Belt section B,C,D and E.
The MITSUBA classical V-belts are an all-round V-belt type with a wide range of applications in agricultural and industrial with a technically and economically good design for most ordinary drives.
The MITSUBA metric wedge V-belts are oil and heat resistance, and they are antistatic. The belt core compression rubber compression zone which is resistant to intensive heat stresses and compressions as well as the power transmitting cord, is wrapped in a fabric cover that provides both protection against external influences and uniform friction against the pulleys. Our 2-Ply Cover fabric is designed for SPB, SPC, and 8V. Stiff cord comstrution is designed to suit SPB, SPC, and 8V section.
The MITSUBA metric wedge V-belts are used in industrial and agricultural machinery. They are specially suitable for drives with high belt speeds. The metric V-belt use up to 50% smaller pulley width than the classical dimension, allowing more compact drives. Since most new drives use universal pulleys, the classical belt can in most cases be replaced with a narrow V-belt, thereby achieving better power transmission and longer belt life.
The MITSUBA classical RE Cog belt is engineered with specially formulated compound to give excellent sidewall wear resistance and bending stress resistance. The belts achieve most high speed and high torque drives with consid- erable ease and having excellent oil and heat resistance as well as antistatic. The mould cog provides high flexibility and a good fit in the pulley grooves as well as a lower operating temperature, which increase belt life.
The MITSUBA classical RE Cog belt has a wide range of applications, especially in industrial drives with high belt speeds and small belt pulley diameters. This belt allows immediate improvement of existing drives which use wrapped belt, providing overall benefits with regards to economy as well as power transmission and redial.

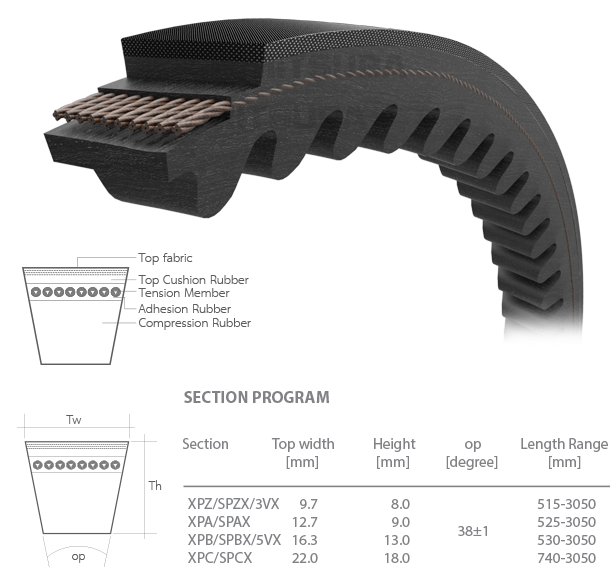

The MITSUBA metric wedge cog belt is a temperature and oil resistant as well as antistatic. The mould cog provides high flexibility and a good fit in the pulley grooves as well as a lower operating temperature, which increases belt life.
The MITSUBA metric wedge cog belt has a wide range of applications, especially in industrial drives with high belt speeds and high torque. This belt allows immediate improvement of existing drives which use wrapped belt, providing overall benefits with regards to economy as well as power transmission and reliability of operation.
The MITSUBA poly V-belt, also termed multi-ribbed belt, with the characteristic V-ribs which is resistant to oil and temperature stresses, static dissipating. The belts are developed to improve capacity with outstanding performance at higher speeds on smaller diameter pulleys. We offer full cord construction, such as nylon cord, polyester cord, glass cord, aramid cord.
The MITSUBA poly V-belt is designed for high speed or high ratio applications that conventional v-belt cannot handle. Increasing the horsepower in 2/3 the space requires for normal belts. Small compressors, compressors(>30kW), Treadmill, Exercise Bikes, Washing Machines, Industrial Washing Machines, Dryer.
The MITSUBA Industrial Timing Belt is superior timing belts for various types of synchronous drives, with performing on a wide range of load capacities and speed ratios. The belt is non-slip engagement with constant angular velocity, relatively maintenance-free, and economical.
The MITSUBA Timing Belt is for maintenance-free performance on timing, can used on industrial machinery e.g. food processing machines, robotic equipment etc.
The MITSUBA Industrial TIMING BELT Ultra Max High precision Improved transmission precision thanks to a 50% reduction in operational elongation leads to higher equipment precision. There is no need for belt retensioning. High strength Transmission capacity is double that of the previous Timing Belt. Space saving designs such as narrow widths and a smaller number of teeth are also available.
The MITSUBA Timing Belt is for maintenance-free performance on timing, can used on industrial machinery e.g. food processing machines, robotic equipment etc.
The MITSUBA Industrial TIMING BELT PK PLUS is offering rubber timing belts with on back poly-V ribbed PK belt perfectly designed for the flour mills and rice industries. Perfect combination of best chloroprene and fiber grade materials, our rubber teeth compound offers tooth pitch matching and high wear and vibration resistance. Features minimal friction, our cover fabric will allow perfect positive engagement with pulleys while ensuring great wear and abrasion resistance.
Ideal for flour & rice mills, food grain industry etc.
